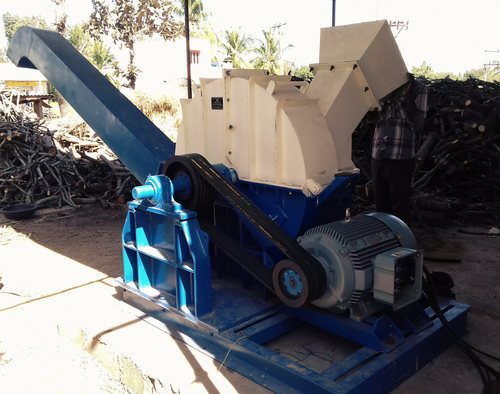

Wood chipper

Name: Wood chipper
Brand: ASK ENGINEERING WORKS
Price: 800000.00 INR
Availability: InStock

Price 800000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Wood chipper Specification

Product Type
Wood Chipper

General Use
Wood Log and Branch Chipping

Material
Mild Steel

Production Capacity
2-3 Tons/hr

Product Shape
Rectangular

Weight (kg)
Approx. 1200 kg

Type
Heavy Duty Industrial

Computerized
No

Automatic
Semi-Automatic

PLC Control
No

Cooling System
Air Cooled

Voltage
380 V

Motor
Electric, 22 kW

Main Shaft Speed
1440 RPM

Pressure Form
Hydraulic Feeding

Roller Width
260 mm

Roller Diameter
400 mm

Roller Material
Alloy Steel

Structure Form
Stationary

Processing Temperature
Normal Ambient

Briquette Size
50-100 mm chips

Dimension (L*W*H)
2100 x 900 x 1300 mm

Feature
Continuous Feeding, Safety Interlock

Color
Green

Blade Material
High Carbon Steel

Safety Features
Emergency stop, protective guards

Noise Level
< 85 dB

Paint Type
Anti-corrosive Paint

Feeding Method
Manual/Hydraulic

Discharge Method
Conveyor Belt/Ejector

Input Material Size
Up to 100 mm diameter

Wood chipper Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Paypal, Cash Against Delivery (CAD), Western Union, Cash in Advance (CID), Cheque, Delivery Point (DP), Telegraphic Transfer (T/T), Days after Acceptance (DA)

Delivery Time
3 Days

Sample Available
Yes

Main Export Market(s)
Western Europe, Central America, Australia, South America, Asia, Eastern Europe, Middle East, Africa, North America

Main Domestic Market
All India

About Wood chipper

Wood chipper exporter and manufacturer in Hyderabad

Shredding Material	wood
Power Type	Diesel
Automation Grade	Semi Automatic
I Deal In	New Only
Country of Origin	Made in India

Wood Chipper Specifications :
Machine Dimension : 1100mm *780mm*600 mm
Weight of the machine : 300 kgs (with Motor)
Shredding Capacity : 1500-2000 Kg Per Hour
Motor : 1440 Rpm , 3 phase Motor
Machine Speed : 960 RPM
No.of Blades - 4 nos
Rotor Dia : 600 mm
Feeding material upto 4 inch in diameter
output size : 5 to 10 mm
Blades material : D2
Blade Thickness : 12mm
Belts : B33 Fenner made

We do have Different model : 2HP, 3 HP, 5 Hp, 7.5 HP, 10 Hp

Efficient Wood Chipping Technology

Our wood chipper utilizes a robust hydraulic feeding system combined with an electric motor delivering 22 kW of power. Designed for heavy-duty industrial use, it can process logs and branches up to 100 mm in diameter. The continuous feeding mechanism ensures smooth operation at impressive production rates of up to 3 tons per hour. With specially engineered high carbon steel blades and alloy steel rollers, users benefit from extended tool life and consistent output quality, making it ideal for large-scale wood chipping needs.

Enhanced Safety and Durability

This chipper features multiple safety mechanisms, including emergency stops, protective guards, and safety interlocks, ensuring safe operation for all users. The structure is painted with an anti-corrosive coating to withstand demanding industrial environments, while the high-grade roller and blade materials guarantee durability. With a noise level below 85 dB, it maintains a comfortable working environment without compromising production speed or chip quality.

FAQs of Wood chipper:

Q: How do I operate the wood chipper for chipping logs and branches?

A: The feed material, such as wood logs and branches up to 100 mm diameter, is placed manually or through hydraulic feeding. The chippers continuous feeding system moves the wood towards the high carbon steel blades, which process it into chips, subsequently discharged via a conveyor belt or ejector.

Q: What safety features are included in this wood chipper?

A: The machine incorporates emergency stop buttons, protective guards around key components, and safety interlocks to prevent operation unless all guards are correctly in place. These features help minimize hazards during use.

Q: When should the blade and roller components be inspected or replaced?

A: Blade and roller maintenance depends on the frequency and intensity of use. For heavy-duty, continuous operation, it is recommended that you inspect blades and rollers for wear after each production shift and replace them if there are signs of damage or significant dullness.

Q: Where can the wood chipper be installed for optimal use?

A: The stationary structure of the chipper makes it suitable for installation at sawmills, wood processing factories, or industrial plants. Ensure it is placed on a level, accessible surface, allowing easy material entry and chip discharge.

Q: What is the process for discharging processed wood chips?

A: After the wood is chipped, the machine uses a conveyor belt or ejector system to discharge chips efficiently. This setup enables continuous operation without bottlenecks and facilitates collection for further processing, storage, or transportation.

Q: How does the noise level benefit working conditions?

A: With a rated noise level below 85 dB, the chipper delivers quieter operation compared to older models, contributing to safer and more comfortable working conditions in industrial environments.

Q: What are the advantages of using this wood chipper for industrial production?

A: The main benefits include high processing capacity (2-3 tons/hour), robust continuous feeding, enhanced safety, and durable construction materials. These features help streamline wood chipping operations while reducing maintenance needs and operational risks.
